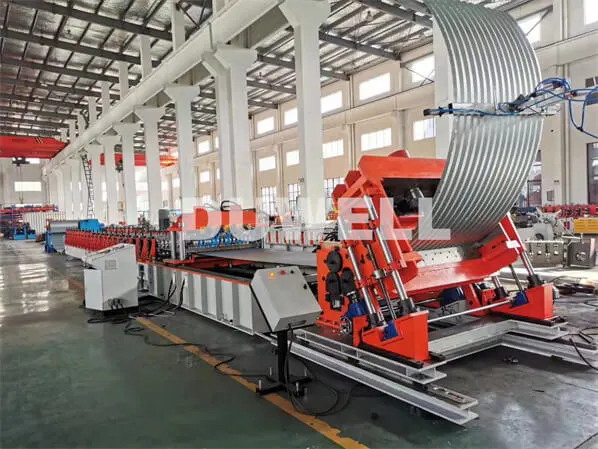

Our steel silo roll forming machine is a high-precision, automated production line designed to manufacture corrugated steel panels for grain silos, storage tanks, and industrial bulk containers. The machine forms continuous galvanized steel coils into uniform, high-strength silo wall panels with excellent weather resistance, durability, and structural integrity. With advanced engineering, this steel silo roll forming machine ensures reliable performance and consistent product quality.
As a professional silo roll forming machine manufacturer, Duwell provides complete production solutions combining robust machine structure, precise forming accuracy, and stable long-term operation. Our machines are widely used in global silo and bulk storage projects.
APPLICATION of Steel Silo Roll Forming Machine
✔ Grain storage silos
✔ Cement & fly ash storage tanks
✔ Industrial bulk material containers
✔ Steel Silo Roll Forming Machine can also be applied in agricultural & commercial warehouses
APPLICATION of Steel Silo Roll Forming Machine
Backed by years of roll forming manufacturing experience, Duwell steel silo roll forming machine solutions are designed to meet different capacity, thickness, and structural requirements for various silo applications.
COMPONENTS of Steel Silo Roll Forming Machine
Each steel silo roll forming machine is independently engineered and assembled by Duwell to ensure smooth coordination of all working units.
Uncoiler: Loading the steel coil
Guiding and Leveler: Guiding the sheet into roll former
Profiling Roll Forming Machine: For precise profile forming.
Hydraulic punching device: Punch the bolt holes on the sheet
Hydraulic bending and cutting device: For bending the panel and precise cuts.
TECHNICIAN DETAILS of Steel Silo Roll Forming Machine
Working process
5 ton decoiler —→ Guiding and leveling device—→Hydraulic punching device—→Roll-forming Machine —→Adjusting —→ Hydraulic cutting—→ Run out table
Duwell focuses on precision manufacturing and strict quality control for every silo corrugated panel roll forming machine, ensuring stable performance and consistent panel quality during continuous production.
Machine parameters
TECHNICIAN DETAILS of Steel Silo Roll Forming Machine
Uncoiler: 5 Tons hydraulic decoiler
Forming station: 20 stations
Driving type: Gear box transmission
Main motor power: 15KW x 2sets
Shaft Dia: 110mm
Roller material: GCr15 with quenching and chrome plating on surface. Hardness: HRC58~60
Hydraulic system: 7.5kw*3 sets
Electrical system: Delta control system
Cutting type: Hydraulic cutting
Punching system: Hydraulic punching with servo motor
Cooling system: water cooling system
Material thickness: 1.0-1.5mm，Galvanized sheet
Forming speed: 16m/min
If you are looking for a reliable roll forming equipment manufacturer, please contact us.
