In the inspection process of electronic components, the PCB X-Ray inspection machine can be directly connected to the smt x ray inspection for high-capacity automatic inline full inspection, it can be used offline with unloader and loader. The pcb x ray machine price is very reasonable. Fully automatic judgment and inspection are carried out for the characteristic area of the circuit board or the designated device. The automated inline pcb x ray inspection machine supports fully automatic inline inspection of IC, BGA semiconductor devices, SMT and PTU packages, sensors and other fields.
Seamark Inline PCB X Ray Inspection Equipment
XL5800 X-Ray Inline Inspection Equipment
XL5800 is an inline seamark x ray automatic inspection device equippedwith an innovative self-developed Al intelligent Inspectionalgorithm. It has functions such as inline automatic feeding,automatic Inspecti...

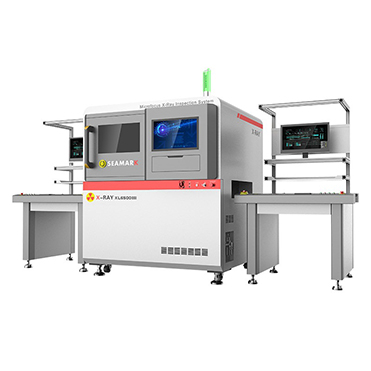

XL6500B Inline X-Ray Inspection Machine
XL6500 is an SMT inline micro-focus X-ray inspection equipment for electronic components. It can be directly connected to the SMT production line, or it can be used offline with the loading and unloading conveyors.
XL6500F X-Ray Inline Inspection Equipment
XL5800 is an inline X-ray automatic inspection device equippedwith an innovative self-developed Al intelligent Inspectionalgorithm. It has functions such as inline automatic feeding,automatic Inspecti...
XL7800 X-Ray Inline Inspection Equipment
XL5800 is an inline X-ray automatic inspection device equippedwith an innovative self-developed Al intelligent Inspectionalgorithm. It has functions such as inline automatic feeding,automatic Inspecti...
What Is X-Ray Printed Circuit Board (PCB) Inspection machine?
Across different fields, from aerospace to aquatic to clinical manufacturing, x-ray PCB inspection machine is used to discover covert flaws in solders and various other manufacturing errors, which are unseen to ordinary optical inspections. Utilizing x-rays to determine errors, minor or significant, x-ray PCB inspection equipment does not damage the board under inspection.
The aspects that make PCB inspection a challenging affair consist of:
Surface Mount Technology
The Surface Mount technology has actually led to smaller packages as well as leads. These, consequently, make PCBs denser, with numerous parts concealed between the layers.
Size of the components
Miniaturization of motherboard elements is currently a pattern in electronics production. Currently, there's an excellent need for denser boards, which has exerted pressure on the manufacture of PCB components.
Placement of Components
There's a wonderful demand for smaller as well as layered equipment to save on room as well as make the best use of capabilities. As a result, lots of components as well as solder joints are being placed within the internal layers of electronic devices.
These complex needs, as well as designs, make it hard for common inspection techniques such as ultrasonic, optical, and thermal imaging to supply detailed fault-finding images. To get rid of these difficulties, an X-ray for PCB inspection is utilized.
Benefits of X-Ray for PCB Inspection
Quick responses at the beginning of product development allows the makers to take restorative steps to improve quality and also motivate a favorable brand name.
Designers will certainly have the opportunity not to improve defective components, minimizing unneeded expenses.
The x-ray makes it possible for inspectors to recognize a series of possible problems on the printed motherboard and recommend specific corrective actions.
How do Inline pcb x ray inspection systems work?
The X-Ray inspection equipment uses high-voltage accelerated electrons to release x-rays that penetrate the sample and leave an image. The technician observes the relevant details of the sample through the brightness of the image.
Now price of x ray inspection machine for sale is reasonable, anything you need, please contact us.
